Our range of luxury Aluna aluminium windows are perfect for a multitude of applications. Aluna provides the keys to unlock the buildings light potential in a way that completely suits the end user’s needs, enabling maximum luminosity and additional light and elegance into any room.
The Aluna window’s super slim sash offers minimal sightlines for optimal views. Secure to PAS24, the Aluna window exceeds Part L compliance with WER rating A and new build requirement of 1.4 W/(m2k) is achieved when combined with highly energy efficient glass.
Profile and Features
Marine grade profile as standard
Super slim sash options offer minimal sightlines for maximised views
PAS24 (2022) safe and secure accreditations are littered across the range
A powerhouse thermal performer, exceeding Part L compliance with a WER rating of A
A new build requirement as low as 1.4 W/(m2k) is achieved when combined with highly energy efficient glass.
Versatile and guaranteed to deliver smooth and effortless operation, Aluna windows can be fabricated from a wide palette of colour options with a bespoke powder coating service also available providing freedom and flair in design.
Glazing
We can offer you the best aluminium window products the market has to offer, products that let the outdoors inside on every fenestration need on an entire home project. It can even be glazed from the inside and the outside for simple, pain-free installation.
All configurations of the Aluna window system can be finished in several glazing options to create a style that suits any property. Choose from:
Double glazed
Triple glazed
Integral blinds
Heritage look astragal bars
Solid panel inserts
Colours
Aluna windows are available in any RAL colour upon request. Perfectly complementary with our other products, the standard colours that we have in stock are Grey 7016 (Matte), Black 9005 (Matte), White 9016 (Gloss), Grey 7016 (Matte) on White 9016 (Gloss), Black 9005 (Matte) on White 9016 (Gloss), Textured Grey 7016 and Mill Finish.
Universal Aluminium Cills
Our range of universal aluminium cills with pre-drilled screw ports are compatible with most other door and window systems, as well as with our Aluna window system. They are effective in directing water away from brickwork and also offer an additional design element to the aesthetics of the window.
Our aluminium cill is more robust than PVC alternatives and comes complete with plastic push-in colour matched end caps, in our standard stock colours, for a secure and sleek finish. Cill sizes are 90mm, 150mm, 190mm and 230mm.
Configurations

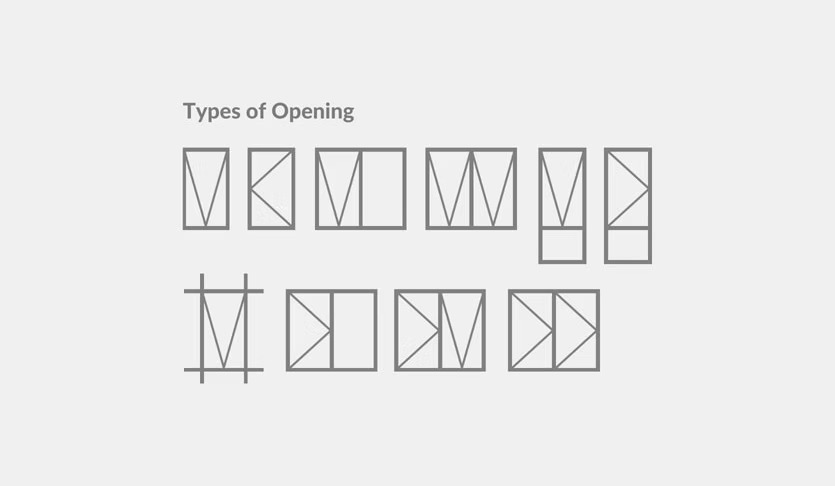

Some of the most popular applications that can be made from the Aluna window system are listed below but there are many more besides. Please refer to the configuration diagram.
Can be used as a side light with openers and easily couples to our Aluna bifold door system.
Side hung opener next to a fixed frame.
French casement window with double side hung openers.
Standard casement window – top opener over a fixed frame.
Crucifix 4-pane window with 2 top openers over 2 fixed frames
Technical Performance
Versatile sizing up to 1500mm height and maximum widths of 1500mm (top hung) and 900mm (side hung)
PAS24: 2022 compliant for security
81mm depth flush casement system
73mm depth standard casement system
Energy efficiency rated U-values as low as 1.1 U W/m2K and Door Energy Rated (DER) A to meet Part L requirements
Glazing options 28 – 44mm
Maximum sash weight 50kg (top hung) and 40kg (side hung)
Air permeability Class 4 (600Pa) EN 1026:2000, EN 12207:1999
Water tightness top hung Class E1500 (1500Pa) EN 1027:2000, EN 12208:1999
Water tightness side hung Class 8A (450Pa) EN 1027:2000, EN 12208:1999
Wind load resistance top hung Class CE 2400 (2400Pa:1/300) EN 12211:2000 EN 12210:19999
Wind load resistance side hung Class C5 (2000Pa:1/300) EN 12211:2000 EN 12210:19999
