Bringing light to smaller spaces, the Aluna glazed door offers an eye-catching and modern door solution.
The Aluna glazed door is the perfect solution for smaller spaces that lack natural light.
In spaces with little room for patio or bifolding solutions, the single door floods a room with natural light, creating a bright and airy living space, thanks to its large glazed panel.
Profile
Aluna glazed doors offer a modern, bright entranceway, complete with a full range of aesthetic and practical features for a long-lasting solution.
Providing a perfectly comprehensive look and ease of fabrication, the Aluna glazed door is made using the same popular aluminium system as the Aluna French and bifold doors.
Customisable with a full range of colour, glazing and hardware options, the Aluna glazed door offers a elegant and versatile solution for almost any entranceway.

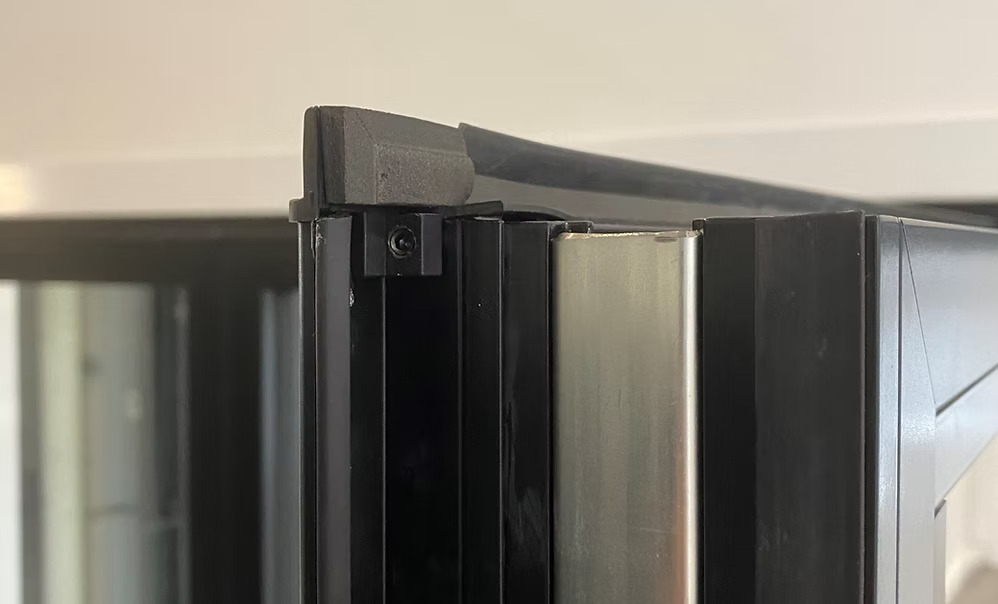

Adjustable Jamb
The Aluna bifold system has been designed to be quick and easy to manufacture and install. The system offers an optional adjustable jamb feature for maximum versatility of +/- 4mm either side during installation and is easily adjustable at a later date with an allen key

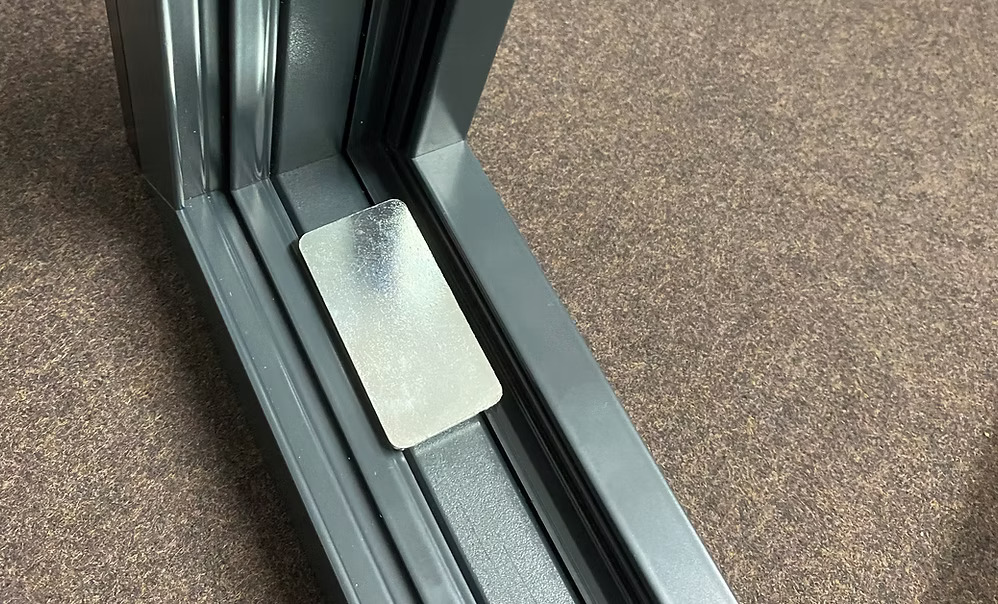

Toe & Heel Device
We completely understand what our fabricator partners need to stand out from the crowd and attract the trade installer. With the Aluna glass adjuster simple adjustment after installation without the requirement to deglaze the sash makes toe and heeling a fast and simple process on site.
Unique Universal Lock Keep
Designed exclusively for us by experienced product developers, with the fabricator in mind. It is suitable for both left and right hand sides of the doors, making it easier to order, stock and fabricate! It takes away the headache of having to stock both left-hand and right-hand lock keeps and alleviates the potential for error at the fabrication stage.
It can be easily adjusted with an allen key. There’s a reduced number of screws needed of just one type of screw and plastic alignment packers for ease of fitting. The wider faceplate gives increased strength, with diecast back boxes for hooks and centre deadbolt. The reduced hook box depth means no confliction with the intermediate lock configuration.
Door Restrictor
Enhance the operation of the Aluna glazed door with a 90 degree door restrictor. This prevents the door from opening more than 90 degrees, if it was to get caught in the wind for example. The arm can also be easily detached to allow full opening of the door. The restrictor is easy to install and can be retrofitted on site.
Heritage Look Astragal Bars
Offering a slimmer design than the fixed transom, Aluna astragal bars are available in 25mm and 40mm widths in a variety of finishes.
Fixed Transom Heritage
Our market leading stunning, strong and contemporary Aluna True Divide Heritage style add luxury to any window, bifold, French or single doors.
Integral Blinds
We have a range of luxury integral blinds to meet any requirement.
Colours
Our sliding patio door system is available in any RAL colour upon request. The standard colours that we have in stock are Grey 7016 (Matte), Black 9005 (Matte), White 9016 (Gloss), Grey 7016 (Matte) on White 9016 (Gloss), Black 9005 (Matte) on White 9016 (Gloss), Textured Grey 7016 and Mill Finish.
Standard Threshold
The standard threshold (55mm) acts as a full weather break, keeping the property dry and warm regardless of outside elements. Recommended for external bifolding doors.
Integrated Cill & Threshold
Our integrated cill and threshold profile provides full weather rating on our lowest threshold and maximises the overall sash height of the door leaf. For ease of fabrication, the profile already has pre-drilled drainage slots along the inside face.
Low Threshold
Our Low Threshold (20mm) doesn’t offer as much weather protection but creates a seamless look. Lower thresholds are less of a trip hazard than higher ones so are more suited for those with mobility issues or small children.
Low Threshold with Ramps
When a threshold can’t be sunk below floor level and accessibility is required, a ramp can be added either side of the low threshold as an optional extra.
Universal Aluminium Cills
Alunet’s range of universal aluminium cills with pre-drilled screw ports are compatible with most other door and window systems, as well as with our ALUNA bifold system. Their main benefits are directing water away from brickwork while also offering an additional design element to the aesthetics of the door or window.
Technical Performance
PAS24: 2022 compliant for security
Glazing thickness up to 44mm
Energy efficiency rated U-values as low as 1.1 U W/m2K and Door Energy Rated (DER) B to meet Part L requirements
Weather proof tested to BS6375 Part 1 : 2009
Frame depth of 73mm
Single or dual colour available. Factory powder coated to marine quality as per Qualicoat regulations
Air permeability class 4 (600 Pa)
Water tightness class 9A (600 Pa)
Wind load resistance class A3 (1200; 1/150)
