Meticulously Designed, Panoramic Sightlines, Luxury Redefined.
With marine grade PAS24 secure aluminium as standard and Part L compliant U-values as low as 1.1 W/m2K, DER Rating B, when combined with triple-glazed glass, you can be completely assured by Aluna.
The super slim profile sections of the Aluna bifold system minimise the visible framework and maximises the glass area, with sightlines of just 107mm from frame to sash. Inviting natural light to flood through any space.
The Aluna Bifold System
Our market leading Aluna bifold system can be manufactured with up to 7 leaves each way (14 in total), opening from the left or right, towards the inside or outside of the property. The moving corner post option enables right angled bifolding doors, including the return, to open out fully, with the option of a fixed corner.
Engineering-grade hardware allows for silky smooth opening and closing operation. Perfect to open up your space to the outdoors and create a visually stunning addition to your property.
Sleek, Stylish & Versatile.
The super slim profile sections of our bifold system minimises the visible framework and maximises the glass area, with super slim sightlines of just 107 mm from frame to sash
Aluna bifold patio doors have cutting edge features and performance paired with an array of stylish finishes
Offering one of the largest sash sizes available, up to 1200mm wide and 3000mm high per pane
Our bifold system also has part L compliant U-values as low as 1.1 W/m2K, DER Rating B, when combined with triple-glazed glass and 1.4 W/m2K when double glazed
Click and forget clip-in beads are also fully available on our Aluna range of bifold systems
Expansive choice of handle hardware and accessories to complement any preferred design
120kg heavy duty wheel hardware as standard providing efficient, smooth and unrestricted operation
Colour matched to an entire whole house suite of Aluna luxury products including Sliders, Windows and roof lights
Made with marine grade aluminium as standard and are secure to PAS24.
Single Doors

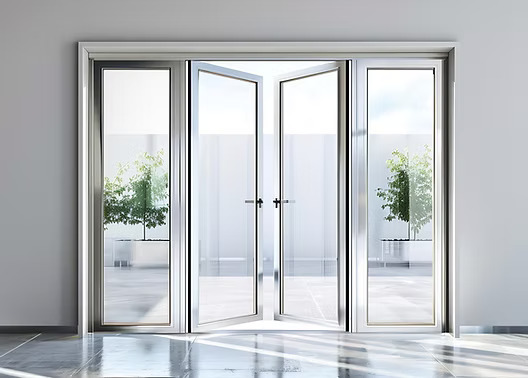

French Doors

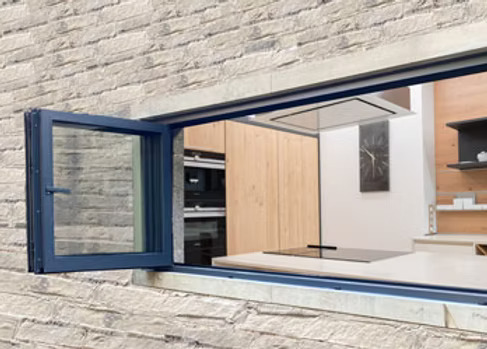

Bifold Windows
Click & Forget Clip In Beads
Profile & Features
Click & Forget Clip In Beads
Clip-in beads are also fully available on our Aluna range of bifold systems. Our clip in bead is unique in that when installed with our market leading Aluna profile, installers benefit from both flexibility and ease of installation, dramatically reducing the time of install per pane.
What sets our new bead design apart is the confidence in the sound it makes as it is installed. Simply click it into place without the need for tools or any excessive force where traditionally, glazing would require a time-consuming wedge gasket.
Unique Universal Lock Keep
Our PAS24 (2022) accredited Lever Lever Lock System enables the ultimate symmetrical, premium, sleek finish to your fabricated door. It’s unique locking option can be installed within our super slim sash creating an aesthetically pleasing finish to the door design.
Gone are the lever and opposing slave door handle and in there place is a uniform mirrored aesthetic with dual handles. To upgrade to Lever Lever no additional gaskets or profiles are required.
Rebate End Cap
Speed, ease, confidence, revenue. Supplied as a pair an easy to snap sprue with a new foam gasket the Aluna rebate end cap improves sealing against the sash
With easy installation – 1 turn of the grub screw locks the end cap securely into place. No messy gluing process is required and the end cap remains firmly in place during transit to site.

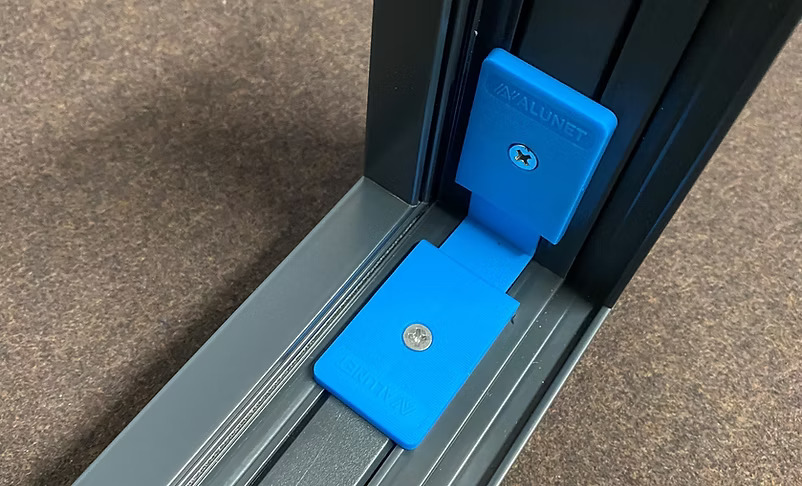

Glazing Packer
Making glazing even faster for installers, offering the optional Aluna glass packer differentiates fabrication. Simply fit into the corners of the sash for enhanced speedy toe and heeling, this 4mm thick recycled plastic addition makes installs fast and easy.
Adjustable Jamb
The Aluna bifold system has been designed to be quick and easy to manufacture and install. The system offers an optional adjustable jamb feature for maximum versatility of +/- 4mm either side during installation and is easily adjustable at a later date with an allen key
Toe & Heel Device
We completely understand what our fabricator partners need to stand out from the crowd and attract the trade installer. With the Aluna glass adjuster simple adjustment after installation without the requirement to deglaze the sash makes toe and heeling a fast and simple process on site.
Heritage Look Astragal Bars
Offering a slimmer design than the fixed transom, Aluna astragal bars are available in 25mm and 40mm widths in a variety of finishes.
Fixed Transom Heritage
Our market leading stunning, strong and contemporary Aluna True Divide Heritage style add luxury to any window, bifold, French or single doors.
Integral Blinds
We have a range of luxury integral blinds to meet any requirement.
Colours
Offering a perfect colour match with our Auna French and bifolding doors, the standard colours that we have in stock are Grey 7016 (Matte), Black 9005 (Matte), White 9016 (Gloss), Grey 7016 (Matte) on White 9016 (Gloss), Black 9005 (Matte) on White 9016 (Gloss), Textured Grey 7016 and Mill Finish.
Available in single or dual colours, the Aluna glazed door system is factory powder coated to marine quality as per Qualicoat regulations. The Aluna glazed door system can also be made available in any RAL colour upon request.
Standard Threshold
The standard threshold (55mm) acts as a full weather break, keeping the property dry and warm regardless of outside elements. Recommended for external bifolding doors.
Integrated Cill & Threshold
Our integrated cill and threshold profile provides full weather rating on our lowest threshold and maximises the overall sash height of the door leaf. For ease of fabrication, the profile already has pre-drilled drainage slots along the inside face.
Low Threshold
Our Low Threshold (20mm) doesn’t offer as much weather protection but creates a seamless look. Lower thresholds are less of a trip hazard than higher ones so are more suited for those with mobility issues or small children.
Low Threshold with Ramps
When a threshold can’t be sunk below floor level and accessibility is required, a ramp can be added either side of the low threshold as an optional extra.
Universal Aluminium Cills
Alunet’s range of universal aluminium cills with pre-drilled screw ports are compatible with most other door and window systems, as well as with our ALUNA bifold system. Their main benefits are directing water away from brickwork while also offering an additional design element to the aesthetics of the door or window.
Technical Performance
Market-leading maximum sash size of 1200mm x 3000mm.
Minimal sight lines of only 107mm
PAS24: 2022 compliant for security
Glazing thickness up to 44mm
Energy efficiency rated U-values as low as 1.1 U W/m2K and Door Energy Rated (DER) B to meet Part L requirements
Weather proof tested to BS6375 Part 1 : 2009
Frame depth of 73mm
Single or dual colour available. Factory powder coated to marine quality as per Qualicoat regulations
Up to 120kg per door leaf allowing for large openings
Engineering grade running rollers for a smooth and silky opening and closing operation
Air permeability class 4 (600 Pa)
Water tightness class 9A (600 Pa)
Wind load resistance class A3 (1200; 1/150)
